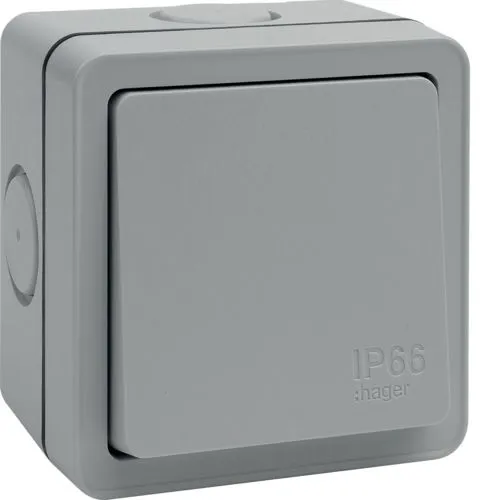

Hager WXPPS12 Sollysta Weatherproof IP66 10AX 1G 2-Way Switch

• IP66 rating conforms to BS EN 60529 : 1992
• Functional products tested and certified to BS EN 60669-1, AC only
• Robust and rugged enclosures designed to withstand the elements
• Cable entries: 90 x 90 = 4x20, 1x20 & 1x25

Specification

• Switch mode: 2 way
• Rated current: 10AX/li>
• Depth: 50 mm
• Height: 90 mm
• Width: 90 mm
• Colour: light grey
• Material: Polycarbonate (PC)
• Standard: BS EN 60669-1
• Imprint: with clear terminal markings

Data Sheet:
