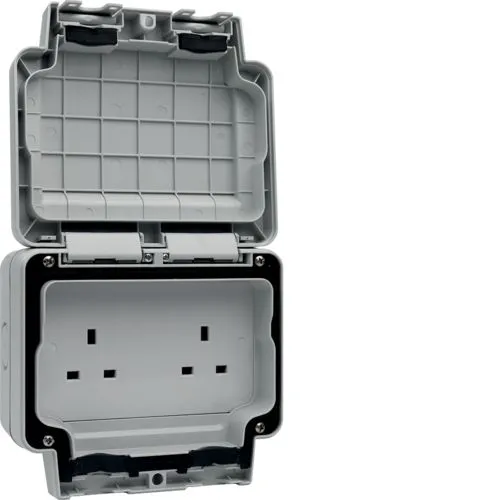

Hager WXPS82 Sollysta Weatherproof IP66 13A 2G Unswitched Socket
- IP66 rating conforms to BS EN 60529 : 1992
- Functional products tested and certified to BS 1363 Part 2, AC only
- Robust and rugged enclosures designed to withstand the elements
- Unique double hinge allows lid to open a full 180 degrees
- Fixing point for padlock
- Cable entries: 103 x 116.5 = 4x20, 1x20 & 1x25
Specification
- Fixing mode: flush-mounting
- Nominal voltage: 250 V
- Rated voltage: 220 230 V
- Rated current: 13A/li>
- Depth: 88.25 mm
- Height: 116.5 mm
- Width: 146 mm
- Full cover plate
- Colour: light grey
- Material: Polycarbonate (PC)
- Type of connection: screw
Data Sheet:
